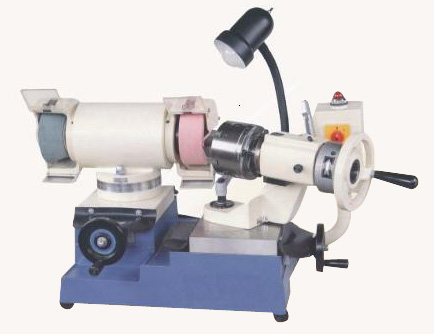

| Universal Cutter Grinder. > EPP-32N |
|
|
|
| Patent No.75717 |
 |
|
EPP-32N |
Patented replacement-free
double cam. |
1.Grinding Capacity:1.5-32mm(Staight shank & taper
shank) Double wheels. It only need to rotate the motor
when want to grind the tool of different material. It
can increase the safety & save the time for changing
& repairing the grinding wheel.
2.The kinds of grinding tool include: Drills,step drills,
tapes, lips of end mills, round bars, etc.
3.Adopts precision 4"6 pawl self-centering chuck,clipping
one time.
It can grind the balde of drills and do the paring of
dirlls abdomen. The angle of drill both sides and the
length of the blade are the same affter grinding. It can
keep the accuracy of the center of drills without off
center. |

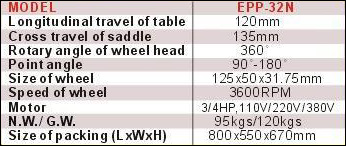

Specification |
|
| The above mentioned specifications are subject to change
without notice. |

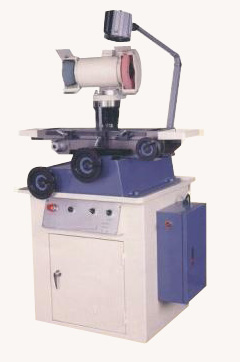

| Universal Cutter Grinder. > EPP-50 |
|
| Feature |
1. The machinery can grind drills, step drills, NC drills,
Taps, end mills, ball radius end mills, lathe tools, ball
radius lathe tools, counter sinks, side cutters, round
bar, reamers, hobs,round cutters, etc by changing the
attachment.
2. Double wheels . It only need to rotate the motor when
want to grind the tool of dirrerent material. It can increas
the safety & save the time for changing & repairing
the grinding wheel.
3. Adopt import & precise toll guide on the table.
The table is stable and can be operated smoothly.
4. Adopt FC30 cast iron with hightoughness. It can keep
the precision of the machine in a long time. |
|
 |
 |
| 50B Drills & taps grinding attachment |
50E R type end mills & cutters grinding
attachment |
The main spindle of wheel head is designed
three axis. The motor can be rotated 360 in horzontal
plane and also can be set the incline angle & eacape
angle of drills easily. It can increase the grinding function
& range of machinery. |
|
 |
 |
 |
| 50F Lathe tools grinding attachment |
50K drills & cutters grinding attachment |
50D end mills grinding attachment |
50H tools grinding attachment |

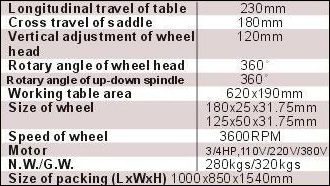

| Specification |
 |
| The above mentioned specifications are subject to change
without notice. |
|
|
|
|
 |
